Albion Yard

Heljan 02 Review

Posted on March 12, 2025 by bawdsey

Heljan have a good record of producing interesting OO gauge diesel shunters and the 02 production sample seen here seamlessly fits into that range. The 02’s were made by the Yorkshire Engine Company of Sheffield as a batch of twenty for British Rail between1960 and 1961 based on an existing design, around another fifty or so were built specifically for industrial use. The BR locomotives were allocated to Midland Region and spent most of their lives in the industrial Northwest in the Liverpool and Manchester area.

The model in for review is Catalogue number 2841 DCC ready, OO gauge. The basic specification include Next18 decoder interface, and interior and external lighting. The model weighs in at 122 grammes which is excellent of such a compact model. There is provision for DCC sound included too, with a speaker already fitted. Note that this being a pre-production model within the handbook there is a speaker mounting location identified on the underside of the cab roof. The packaging is the familiar sturdy carton, and internal foam surround with the model held inside a vacuum form ‘ice cube’ type cradle. No components had come loose in transit. Also included is a detail pack which includes etched maker name plate, 3 link couplings, and buffer beam blanking plates. Cab lighting in DC is switchable using a magnetic wand (also included). The instruction handbook is the familiar Heljan leaflet style showing how to remove the body, a parts diagram and historical outline of the class. as mentioned above the instructions suggest fitting an Iphone type speaker in the cab roof, however the speaker is fitted within the chassis, and only requires an appropriate sound chip. In an interesting move Heljan are simultaneously making this prototype in O gauge too which I feel will do well in that market too, both these types will be well suited to the small layout genre.

First impression often counts for me, and the Heljan 02 hits the mark immediately and doesn’t disappoint. It immediately looks in proportion, edges are well defined and thin, particularly the cab roof edges and the color is a good opaque satin finish. Detail fittings are all correctly fitted and square and no evidence of excess glue around them. There are no paint blemishes and the detail printing is legible and clear. The wheel tyre faces are painted black giving the wheels a pleasing uniformity, the brass crankpins do stand out a little but a touch of red paint will easily resolve that small inconsistency. The prototype over its many years of service remained pretty much unchanged. For the livery as supplied it appears that Heljan have all the variations correct on this model and cross checking my available drawing (OPC Pictorial Record of the Diesel Shunter), the dimensions are correct too. Barrow Hill Roundhouse assisted Heljan with their 02 for data collation and research.

The weight of the model is immediately apparent, dropping it on the scale it records a healthy 122 grammes. The running plate and chassis are primarily metal castings with the bonnet and cab plastic. The body has some handrails and door openers moulded in place, but the main bonnet top and rear cab and platform handrails are separate components. The gentle slope of the bonnet profile is well captured. Window glazing is particularly good with individual panes rather than the often seen prismatic mouldings, or as Heljan have done in the past a transparent overpainted cab. Blackened very fine etched windscreen wipers are fitted giving a very effective appearance to the cab. Interior details are visible and individually painted, removing the body will allow access to fit a crew if so desired.

For me the cab glazing is excellent overall but on this sample the frames of the cab side windows had some clear sections. However this is really nit picking and a fine brush with paint will easily resolve that, and far better than it being painted too heavily. At the cab end of the locomotive there are handrails fitted to the rear platform. The model will need a some careful handling around these delicate but distinctive railings. The packaging is designed to give adequate clearance for them. Individual handrails and lamp irons are fitted too with illuminated lamps on the top of the running plate. Individual filler hatches are separate components as are the buffer beam lifting rings.

Bufferbeam detail is good with vacuum pipes fitted and non sprung buffers, included in the detail pack are three link couplings. I’d like to have seen sprung buffers however the practicality of fitting them with the prototypes buffer beam and step configuration makes that impractical. One of the buffers on the rear platform of this sample is slightly misaligned, but is liveable with.

Body Removal

Body removal is straightforward with just three screws required to remove the body for chip fitting or any maintenance. There are two screw underneath the fuel tanks accessed from underneath. The top bonnet lamp hides the third fixing. This is an interference fit that presses into a moulded recess hiding a screw underneath. It’s a component that will need careful handling as it is a very small component.

Cab lighting is controlled by either the supplied magnetic wand or by DCC functions. The DCC fitting is a Next18 configuration. For testing I used a Dapol Imperium 2 six function decoder. This was an easy fix and gave good plug and play results with no fine tuning of functions required, the controller used was an NCE powercab.

The lighting functions are straightforward, cab and/or shunting lights can be selected in DCC. In DC mode just the cab is illuminated, and this can be switched off with the magnetic wand.

Chassis

The split of the body and the chassis is a logical and straightforward one. The body clips onto the running plate and there are no gaps. If fitting a stay alive there may be some challenges fitting one under the bonnet, due to the lack of space. The cab area is open so that may provide an easy option to fit any stay alive required.

So having made good impression straight out of the box the first thing I do is try it on a test track or rollers using a Gaugemaster Combi controller. The chassis runs very quietly and smoothly, and is of rigid construction. The motor is a coreless type with a fitted flywheel driving onto the rear axle. The drive mechanism is hidden and doesn’t intrude into the cab area, another example of the discrete small motor mechanisms we see in today’s models.

The metal chassis block is of split chassis construction with pickup collection through phosphor bronze axle bearings. There is some lateral movement on the axles and the brake shoes are in line with the wheel treads. I’ve not disassembled the chassis to assess EM/P4 capability, but there appears to be sufficient clearance behind the chassis air tanks, brake shoes will require adjusting. The gear train is only fitted to the rear driving axle. For me this is a sound decision as there’s no binding or cogging with this chassis on the gradients with or without loads. The phosphor bronze pickup collars are very effective for this split chassis design. The test track used has a good deal of uneven track and poor joints which usually find any weak spot with a traditional pick up strip bearing on wheel treads or tyres, this model was not troubled by any of the track it was tested on.

Weighing in at 122 grammes there’s good weight for reasonable length trains for such a compact model. I test any RTR releases by using a simple 3 degree slope using Woodland Scenics preformed inclines under my test track, which uses Peco Code 75 Bullhead track. This isn’t fixed down so effectively represents ‘poorly’ laid track. The model under test pulled and pushed from standing starts 325 grammes, using my test wagon and car weights. However, putting four Bachmann MK1 BG’s together weighing 500grammes it started those with some slipping, so there’s a very creditable performance for such a diminutive locomotive. Its good performance has been consistent on five different track types. With Peco Cd75 Streamline in both flat bottom and Bullhead types, and Peco set track there were no issues apart from occasionally stopping on the Bullhead large radius V crossing. Using it on Kato uni track points and Micro engineering points the locomotive does stop on the V crossings. I must emphasis that this isn’t a problem with Heljan’s 02, this is due to the length of the ‘dead’ sections of these V crossings on this type of track, combined with the short wheelbase. Both types of track are uncommon in UK hobby use. The wheelbase vs ‘dead frog’ crossings compare to Pecket/Sentinel/Hawthorn Leslie models from other manufacturers, they all experience similar ‘problems’. The solution to this is primarily to have electrically live point crossings and good track laying, especially if using such short wheelbase locomotives. If using DCC a ‘stay alive’ will minimise any stalling too.

As mentioned in the introduction the model tested is a final engineering sample. The instructions make mention of the user fitting a sound speaker into the cab roof. However there is a fitted speaker included, the instruction pamphlet predating this final production modification. It’s an Iphone type speaker and is very ingeniously fitted behind the drivers console as shown above, so you don’t need to buy one with the locomotive if sound is your thing. Being the follow on shunter release after the Model Rail limited edition Class 11, the 02 keeps the same standards and possibly with the sublime running qualities for a rigid chassis 0-4-0, exceeds them. The opportunities for D&E based micro layouts abound with this release particularly with its longevity in industrial use, and I think it’s likely to be popular in both scales.

Overall then, a very competent and pleasing representation of the 02, to a high standard of finish and detail. The price at £170 in spring 2025 I feel is reasonable for a model of this quality, if you were to locate either of the DJH or Craftsman kits the cost is unlikely to be significantly cheaper, for a product thats not as good, obviously bearing in mind both kits are of early 1980’s vintage. Having built the Craftsman kit, (on the right, above) I much prefer the Heljan version. You often see comments that having ‘made’ something, a kit for example, that the kit build outranks the RTR product because someone has made it. For me that isn’t a factor, this Heljan model is well worth the outlay, and if you want a shunter that packs a punch as well as looks good, this model is well worth considering.

Posted in accurascale, Bachmann, blog, BR Blue, British Rail, Cameo layout, D&E, dapol, DC, DCC, dcc sound, EM, finescale, first look, heljan, ho scale, Hobby, Hornby, Industrial, inglenook, Inspiration, LED Lighting, man cave, Midland Region, model, Model Railroad, Model Railway, Modelling, n gauge, new release, news, O Gauge, OO Gauge, peco bullhead, product news, prototype, railroad, railway, Rapido Trains, review, shelf layout, toy train, Uncategorized, woodland scenics, Yorkshire | Tagged Art, china, first look, food, heljan, Hobby, Model Railroad, Model Railway, OO Gauge, railroad, railway, review, train, travel, writing | Leave a comment

Accurascale’s Diagram 1/108 and 1/109 16T Mineral Wagon Review

Posted on February 16, 2025 by bawdsey

Into the man cave this past week or two Accurascale’s 16Ton minerals have rattled across the doorstep. Two varieties have arrived a set of Diagram 108 re-body, and a set of Diagram 109 riveted body vehicles.

Accurascale ACC1062 1/108 Re-Bodied 16T Mineral Wagon

Accurascale ACC1049 1/109 16T Mineral Wagon

They are packaged in the Accurascale house style of a classy sturdy carton and vacuum formed trays, both sets of mine had no faulty or loose components. Within the carton is an information leaflet and spare sets of couplings including three link chains. As with all the previous Accurascale releases that have arrived the immediate appearance and feel is one of quality.

In Accurascales information leaflet for these 16 Ton mineral wagons they pose the tollowing thought: Mundane? Certainly. Boring? Possibly? But thats the thing when an object becomes familiar, its demise is not noted until it has gone.. I can relate to that, I used to commute into Kings Cross every day, how I wish I’d taken more pictures of the 313’s 312’s and 317’s and just the infrastructure that now is long gone. That very much sums up this prototype, with 221,123 examples built they were everywhere. Look at an image of a British Rail era goods siding from the late 1950’s through to the late 1970’s there’s a good chance a 16T mineral will be in the mix. The packs ACC1049 J, and ACC1062 O I’ve got in the man cave are different to those we have seen supplied in ready to run format previously. The well regarded Bachmann model, introduced in the early 2000’s has always represented a welded construction wagon, the most common body type produced under diagram 1/108. The wagons here represent the diagram 1/108 rebodied wagon and the 1/109 design which was a riveted construction, and neither have been available before in 4mm scale ready to run models.

Doing the old school thing of taking a measuring stick to the models they match published data in the books illustrated above. The appearance is excellent for both types they capture the look of these wagons very well. The diagram 109 is not quite as good as the rebody version due to an error that was unfortunately not sighted with the EP’s, but a bit more on that later, stuff happens!

It’s probably a good time to tip a nod of acknowledgment to the venerable Bachmann 16 Ton mineral wagon (above), that has served us so well since the early 2000’s, a brilliant development at the time, immediately knocking back the over length wheelbase and relatively coarse models of the era, and rapidly selling quickly with each production run. Unsurprisingly there were comments regarding prototype wagon duplication when Accurascale announced the 16T mineral family, was it worth it? Well here’s a spoiler, in a word yes, but there’s no need to throw the Bachmann varieties out, they’re still worth holding onto. Anyway, 3,2,1, we’re back in the room.

Chassis Construction

The model is quite different in its construction to other ‘simple’ open RTR wagons. It differs principally in the chassis is metal and in this first tranche of releases looks to be specific to the unfitted versions. There are many separate detail and functional pieces to these wagons with roughly 40 or so components to each wagon varying on body and door type, roughly double the number in a Bachmann version. As the chassis is a casting, there is good evenly distributed weight across the chassis. This chassis is common to both types under review here.

NEM coupling pockets sit in an integral chassis mount which is hidden behind the wheels from most viewing distances. if you use three links and want an unobstructed view between the wheel end on or at oblique angles this will need to be removed with a saw. For the moment for me, they are unobtrusive enough to leave in situ.

One of the features of these wagons is that there are extra couplings supplied with a socket extender. If you need to run with RTR tension lock couplings and want a bit of extra distance between the wagons the replacement couplings and extender are a simple plug and play fitting. Three link couplings are also supplied which easily slot into the hooks on the chassis, ideally for me this means no extra costs in buying chain links!

The outer ends ends of the chassis headstocks are part of the body mouldings (similar to Bachmann’s), and this allows the variations in headstocks to be included in the body moulding. Buffers are functional and very softly sprung. Varying types will be represented across the range, for these types on the desk the correct 1’6″ spindle RCH design is fitted.

All of the iron work which we previously have associated with solid mouldings on RTR wagons on these chassis’ are on another level with these wagons. Starting with the brake levers, these are incredibly fine plastic, fitting through the equally fine brake lever guards.

Two different brake levers are in evidence for the types on reviewing both exhibit the correct cam mechanism at the V hanger.

The push rods are separate bars including the adjustment pin location holes at the inner ends, and are enclosed by open push rod stirrups. Those features have previously only been seen on modified RTR, kit or scratch built vehicles. W irons are separate plastic fittings including brass pinpoint bearings, the W iron thickness is very thin giving a real look of plate steel. This gives excellent free running qualities. The axle box is integral with the W iron so undoubtedly there will be variations on the theme as the range expands..

The brake shoes have a very close tolerance to the wheel tread, the wheel profiles are RP25-110 and look far better than many others available. These wagons have been tested through Peco Cd75 Bullhead, streamline and Kato uni track with no problems at all, back to back measurements varied between 14.32mm and 14.47mm across the six wagons.

Looking at the W irons there is a peculiar look to the springs, giving the appearance of three leaves whereas the prototype has six. This isn’t particularly noticeable for me but does detract slightly from the rest of the brilliant under frame.

The closed end headstock needs the same work however this is more noticeable so 4mm U shaped plastic channel, once both in place they need painting black to match the rest of the under frame.

Dia 1/108 Rebody

Both the 108 and 109 diagram bodies are well moulded and meet published dimensions The top rails are a bit wide, but no doubt this is to ensure the shape is retained once moulded. The end door is a welded type door as appropriate and includes separate wire hand grab rails.

Diagram 108 above, Diagram 109 with top flap door below

The rebody version is an example of the very subtle differences that could be seen across the fleet. The new bodies had no top door flap, and a curved tumblehome at the bottom of the sides. This curve was introduced to help prevent corrosion at the bottom edges of these wagons.

This curve is quite visible as the side doesn’t have that crisp lower edge that the earlier versions have, and despite it being perhaps a couple of inches radius in real life it’s quite easy to see and hasn’t been reflected in an RTR model previously.

Diagram 1/109 Rivetted construction

Accurascale’s dia 1/109 represents the base forms of the common or garden British Rail standard mineral wagon, there were roughly 25,000 built so whilst as not as common as the dia 1/108 they were not uncommon.

Whilst checking against references and simultaneously with comments on RMweb I noted an error on the body moulding of the 1/109. It appears that in the design and production process the end stanchions were swapped and unfortunately made it through to production. The fix for this error is easy and will be covered further down. The rest of the body is excellent the riveted construction is well captured with the steps and rivet heads subtly moulded and will undoubtedly ‘pop’ with weathering.

The Easy Fix

So to look at the stanchions and fix them is literally a ten minute job. At the door end the stantion is too short, and part of the door closing pin mechanism is missing, as seen below. The top picture shows the door end. The side stanchion of the wagon should extend below the body to the base of the sole bar, and there should be the housing for the door closing mechanism. This can be seen on the lower image which shows the opposite end of the wagon, where the stanchion has been transposed.

The chassis is held in place by four clips at each corner of the wagon. Gently press on these and the chassis releases from the body as a single assembly.

The stanchion can be cut off with a knife or as I have done with a razor saw. The razor saw held flat against the base of the wagon will give a flat cut, the knife can leave an angle. Make sure you retain this removed section as it’ll be refined at the door end.

The three steps above show the modifications to the closed end of the wagon. The extra section of the door mechanism is cut away and the area is touched in later when detail painting. At the door end the section of stanchion is simply aligned with the existing stanchion and glued in place.

Thin CA glue works best as it also acts as a filler

I use thin viscosity cyanoacrylate type glue, this gives a fast drying time but also acts as a filler for any gap. The headstocks also need extending and with the door end I just use a small section of plastic strip. This is aligned to the end of the headstock and again fixed with CA glue. Ive not bothered with filling the section for the door mechanism, as the area will be weathered in due course.

Before modification left hand model, after right hand model

The joint is easily masked with a coast of paint. To match this Accurascale colour I’ve mixed two Vallejo colours, 071.050 light grey and 071.119 White Grey. This gives an almost invisible join close up and certainly works at a normal viewing distance.

The liveries are well applied, the paint is opaque and doesn’t mask any of the fine detail of these wagons. Markings are also crisp and the numbering of the bodies matches those of the under frames. This includes the makers plate with the correct wagon builder legible for each respective number and the 108 has representations of wagon labels within the wagon label clips.

These wagons are sold in packs of three, at time of release at just under £75.00 per pack. For me this is very good value, they are without question the best representation in RTR format of the 16T mineral wagon. These are a ‘duplication’ in some respects of the excellent Bachmann wagon that has served us so well these past twenty years or so. However as with the two types reviewed here there are types we’ve not seen released before, and with real improvements at a competitive price. Regarding the tooling error it is very unfortunate, but with ten to fifteen minutes this error can be resolved. Accurascale are aware of it and have mentioned that any new run of the 1/109 the matter will be looked at, to assess if the moulds can be revised economically and technically to resolve the issue.

I’d argue that these aren’t boring wagons at all, They are excellent reproductions of one of the most common types of standard wagon. I have mixed them with Bachmann versions and the two different manufacturers complement each other really well. Does that mean that the improvements aren’t visible? Well no it doesn’t, but that reflects well on the older model which we know is very good. The thing for me is that if I now want to expand my 16T mineral wagon fleet, these will be the ‘go to’ source. As supplied they have everything I want, quality and just the three link chain supplied makes the difference for me, I don’t have to do anything with them, just enjoy them straight out of the box. Roughly a quarter of a million of these 16T mineral wagons of various diagrams were built by British Rail and its sub contractors. Will Accurascale end up selling a similar number!

A final thought occurs, these fit into the Accurascale “Powering Britain” range, with more steam types coming on line in their range how long before we see an earlier wooden body RCH type mineral to this standard? One that I hope is in their target sights…

Posted in accurascale, Bachmann, blog, British Rail, Cameo layout, D&E, DC, DCC, Eastern Region, Eighties, finescale, first look, Forest of Dean, heljan, ho scale, hobbies, Hobby, Hornby, Inspiration, man cave, Midland Region, model, Model Railroad, Model Railway, Modelling, monday motivation, motivation monday, n gauge, new release, OO, OO Gauge, peco, peco bullhead, product news, prototype, railroad, railway, Rapido Trains, realism, scale modelling, seventies, shades of grey, shelf layout, Southern Region, toy train, train set, Uncategorized, wagon | Tagged Bachmann, Hornby, Layout, Model Railroad, Model Railway, OO, railroad, railway | 3 Comments

Wordless Wednesday (Heljan & Accurascale

Posted on February 13, 2025 by bawdsey

Posted in accurascale, Bachmann, blog, Branch Line, British Rail, Cameo layout, D&E, DC, DCC, Exhibition, finescale, heljan, ho scale, Hobby, Hornby, Industrial, Layout, man cave, model, model photography, Model Railroad, Model Railway, n gauge, O Gauge, o scale, OO Gauge, peco, railroad, railway, realism, shelf layout, shelfie, shelfie4, toy train, train set, woodland scenics | 2 Comments

Aberystwyth To Carmarthen Book Review

Posted on January 27, 2025 by bawdsey

A recent publication that immediately found its way to my book case is:

Aberystwyth to Carmarthen by Geraint Roberts. Published by the Lightmoor Press it weighs in with 304 pages and a price tag of £40.00. Put like that it sounds expensive, but if you’ve got other books Lightmoor like the Forest of Dean or Gloucestershire books this one wont disappoint. This area of the Cambrian Mountains and foothills of Wales has long held a place for me. As a young child family holidays were taken staying in Llandovery and then travelling around the area by car, four of us in a cramped Mini Traveller visiting locations such as the Abbey at Strata Florida, and seeing the construction of LLyn Brianne Dam.

Geraint Roberts isn’t a name familiar to railway enthusiasts. This is the first non fiction book by the author and covers the route from Aberystwyth to Carmarthen in West Wales. Within, it also covers the Newcastle Emlyn and Aberayron branch lines, both of which branch off (unsurprisingly) from this route.

A mix of three original companies that developed this line are covered in the first part of the book with their history, plans and hopes that this route would bring significant commercial benefits to the south west Cambrian region. As with many other railway projects across the uk this never came to pass. This section includes images of timetables and opening ceremonies, and continues into the Great Western era with subsequent closure under British Rail. The page layout in this first section to me is ok but doesn’t fire my imagination, however thats not to detract from the content which is interesting and well written.

The next section covers operating the line and includes images of early motive power, but this isn’t in the style of a Wild Swan type of coverage. Timetables for some sections are included in the earlier section. There isn’t a great deal of data regarding stock etc either but this is not for me a big issue, other similar volumes are no different in this respect.

The best part of the book for me is the core section which looks briefly at each individual station and halt, with images primarily from the British Rail Steam era. The line is covered north to south and the images include station buildings and infrastructure both with and without trains. Most are good quality, but it must be remembered that this route was very much out of the way, and there isn’t anything like the coverage more popular and easier to access cross country routes of the day had. The mix of the images outlined above is excellent with both monochrome and colour images included. Also in this section are signal box track diagrams which are useful for anyone modelling the line. Whilst many of the locations have been covered in the OPC Great Western Stations volumes, this single book covers them with greater detail and variety of images. The Aberayron and Newcastle Emlyn branches have their own chapters at the rear of the volume. Following the style of the core of the book the branches are dealt with station by station and all appear to be previously unpublished which for me adds enormously to the value and practicality of this book.

If you’re modelling the steam era and this route is of interest to you, this book is probably a must have for a comprehensive and affordable coverage of the line. If your interest is biased towards the end of its life with Hymeks and 37’s on milk trains then theres not much included. For me this book is an excellent single source of reference.

Within the images theres so much information in terms of locomotives and rolling stock that used the lines in the BR steam era. I found a surprise too in that one of the common engines on the line I’ve already modelled! Whats really nice is so few of the images are standard platform 3/4 views, there’s much of the environment included, emphasising the beauty and rural nature of the Cambrian foothills the line passed though. It being the authors first non fiction and specific railway book it’s a commendable effort. It’s a book I’ll cherish, and if you have an interest in the line, do take a look at it, it’ll probably end up in your library too.

Aberystwyth to Carmarthen

Lightmoor Press

ISBN 9781 915069 40 5

Posted in accurascale, Bachmann, bachmann 74xx, book, book review, British Rail, dapol, DC, DCC, first look, Great Western, heljan, ho scale, hobbies, Hornby, Inspiration, library, man cave, Model Railroad, Model Railway, Modelling, monday motivation, motivation monday, n gauge, new release, O Gauge, o scale, OO Gauge, pannier, prototype, railroad, railway, reading, reference, research, TT120, Uncategorized, Wales, wild swan | Tagged Branch Line, Hobby, life, Model Railroad, Model Railway, pannier, railroad | 2 Comments

Just another day.. Wordless Wednesday

Posted on January 22, 2025 by bawdsey

OO Heljan 02 & Accurascale 16T Mineral Wagon

Posted in accurascale, Bachmann, blog, British Rail, Cameo, Cameo layout, D&E, DC, DCC, dcc sound, finescale, first look, heljan, HO, Hobby, Hornby, Industrial, Inspiration, layout design, man cave, maple river, Model Railroad, Model Railway, Modelling, Modelu, n gauge, new release, O Gauge, o scale, OO Gauge, Oxford rail, peco, product news, railroad, railway, Rapido Trains, realism, scale modelling, shelf layout, shelfie, shelfie4, toy train, train set, TT120, Uncategorized, wagon, woodland scenics, wordless wednesday | Tagged Bachmann, Hobby, Layout, Model Railroad, Model Railway, OO, railroad, wordless wednesday | 3 Comments

The Background Balance, Start at the end..

Posted on January 18, 2025 by bawdsey

A while back I wrote about trials I was undertaking, Throwback Paint with a mix of paint types.

This was the result for Shelfie2 under natural lighting which I was quite pleased with. That then was used to fill in the backdrop for Shelfie2 and the same technique used on Shelfie4.

Getting the backdrop to work is for me a big part of the layout presentation, if it doesn’t work then attention is drawn away from any modelling to that back scene. That was one of the reasons that Shelfie 2 sits as it does.

The view above, if you’ve followed the blog, socials and seen it at exhibitions will be familiar, but it has always sat uneasily with me, because I know the better viewpoint is actually looking into the layout from the opposite side.

Over the past few weeks this has been one of those areas that has concentrated my thinking I’ve started to brush off the Forest of Dean plans again and deciding if Shelfie2 needs a makeover. If it does go that way then the whole backscene will need to be reworked. If I do that then there’s the opportunity to make this fit with into the bigger story. Shelfie 2 could be worked up into a industry associated with the Sling tramway, either the colour works or the heavier industry of Watkins and boiler and pipe repair.

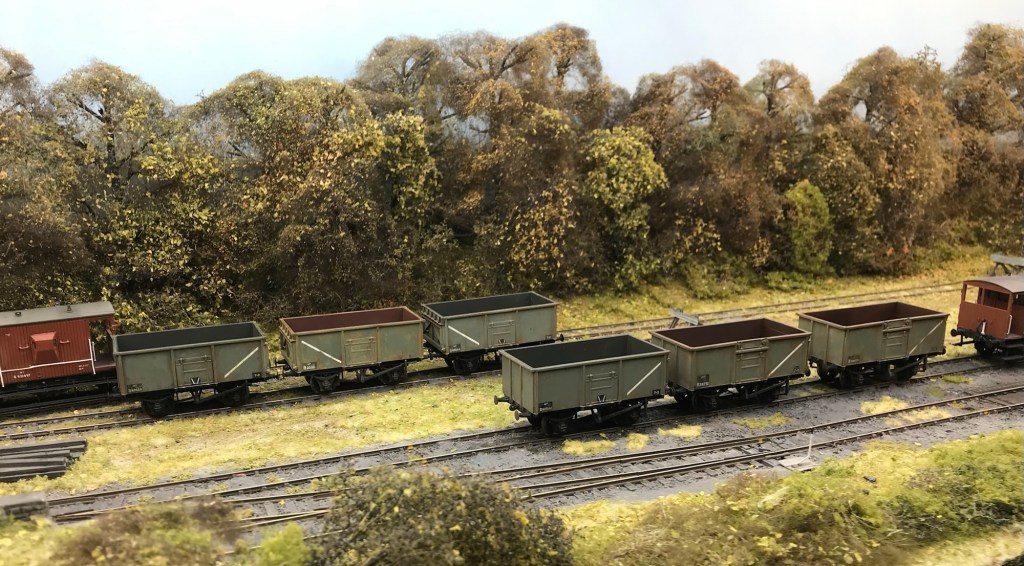

After selling a car, space has come available within the man cave, and a few batches of wagons have arrived 16t minerals mostly to add to the coal train fleet. They are an eclectic mix of kits built from Cambrian, Parkside, Airfix and some Bachmann RTR too. Those too will undoubtedly be joined in due course by some of the latest Accurascale releases, which are just arriving onto the market. I doubt that the differences will be too noticeable between the various types of wagons. Thats not disrespecting any of the manufacturers, the whole idea behind the style of presentation I do is to try and make everything ‘blend’ so no one item be it scenic, track or motive/power rolling stock stands out.

Geoff Taylors Barmouth layout is one of the projects that has underlined that for me. Some stock uses tension lock couplings, and as you get so engrossed in the layout, its atmosphere and operating the system the tension locks aren’t (for me) as noticeable as I thought they would be.

The view above is similar to what I mean, the tank wagons above aren’t immediately noticeable as fitted with traditional tension lock couplings, as your eye hopefully isn’t drawn to them with the other visual features on the layout.

However these tank arrivals will get couplings replaced, most likely to three links. Together with the mineral wagons that Forest itch is definitely getting more pronounced, and one location that can act as a stand-alone layout is the Berry Wiggins Bitumen terminal at Whimsey.

In my heads schematic system plan, Whimsey sits at the furthest extent of the branch line, which reflects reality.

So the end might be a good starting point!

Posted in #saturday, accurascale, Bachmann, barmouth junction, blog, Branch Line, British Rail, Cameo, Cameo layout, dapol, DC, DCC, dcc sound, finescale, Forest of Dean, heljan, ho scale, Hobby, Hornby, Industrial, inglenook, Layout, layout design, life, man cave, Model Railroad, Model Railway, Modelling, n gauge, O Gauge, o scale, OO Gauge, Oxford rail, pannier, peco bullhead, Peco TT, prototype, railroad, railway, Rapido Trains, realism, research, scale modelling, shelf layout, shelfie, shelfie2, toy train, train set, TT120, Uncategorized, Western Region | Tagged accurascale, Bachmann, Forest of Dean, HO, Hobby, Hornby, Layout, Model Railroad, Model Railway, OO, peco, shelfie, trainset | Leave a comment

Twenty Twenty Five, First one in..

Posted on January 1, 2025 by bawdsey

2020, that was quite a year. Seems mad that we’re talking best part of five years ago!

So looking back at some of my first one in posts the 2020 entry caught my eye. In it I refer to the concept of a CJ Freezer Minories type layout I wanted to do, and it’s one of those projects that’s progressing slowly. It does exactly what I wanted to it to do, it’s engaging and surprisingly so for just three turnouts and the time lapse shows it.

Shelfie 3. Lower Milside

As usual other plans are ticking over in the background, there’s still 009 influenced by the Snailbeach line, and an N Finescale project which is sort of a 4mm project that’s been put through the shrink ray.

The main project for the Forest of Dean is a very slow burner in the background. With Peco’s expansion of the Bullhead range with a Y point and the asymmetrical three way due within the year, this may make that progress accelerate. The slow accumulation of twelve and sixteen ton mineral wagons is taking place.

I’m pretty much there with the motive power, a few more 16xx’s might be on the cards. The large panniers roster are I think ‘full’. However I regularly go back and tweak them, finding small improvements, the only thing being that any change then needs adding across the fleet….

So that’s us into 2025 then, two exhibitions, one with Shelfie 4 at Railex in May, and another show later in the year with one of them, not sure which!

Have a good one yourselves!

Posted in accurascale, Bachmann, blog, BR Blue, British Rail, Cameo, Cameo layout, D&E, DC, DCC, dcc sound, DMU, Eighties, finescale, heljan, ho scale, hobbies, Hobby, Hornby, Inspiration, Layout, layout design, life, man cave, media, Model Railroad, Model Railway, Modelling, Modelu, n gauge, Narrow Gauge, O Gauge, o scale, OO Gauge, peco, peco bullhead, railroad, railway, scale modelling, seventies, shelf layout, shelfie, shelfie3, toy train, train set, TT120, Uncategorized, youtube | Tagged life, media, Model Railroad, Model Railway, OO, shelfie, train set | 5 Comments

Transformation Tuesday, Last one out 2024

Posted on December 31, 2024 by bawdsey

This is the last one from this year, as we head towards the new year tomorrow, we’re still in the no mans land of old year/new year and perhaps scratching round for something to do, but not a big involved thing.

At the Warners NEC show one of Heljans announcements was the reintroduction of their B tank wagons, and this had me thinking about a set I’d got which I hadn’t done anything with. The model overall is pretty good, it sits a little high, but I can live with that. The thing for me with the weathered set I’d got, was the heavy uniform weathering that we often get with factory finishes. I’d had a look at this previously but not found a solvent that would remove the weathering, and I didn’t want the full repaint route. One of the things I do with my modelling is if I find a product I like I tend to stick with it. This is the case with Revell’s painta clean, a brush cleaning product. Basically it’s Mek and as such needs treating with real caution. Having been at a loss to find a suitable solvent I tried a small area round the tank filler, and found that this worked in removing the weathering paint. I quickly found that if used too much, it will remove the livery lettering that we need to keep on the model. The difference this technique made gave a real transformation in the wagons appearance and worth sharing. Again I must emphasise the hazardous properties of using the solvent. Work in a well ventilated environment, and remember the solvent will actually damage the model so you must treat it with respect!

Realising that this was a useful development I thought that its not a technique that would easily transfer to the step by step process of print media, and have done a video showing how to use this to get a significantly improved weathering effect.

So adopting the picture speaks a thousand words protocol, here’s the video.

As far as other projects go, there are a few in progress, Shelfie 3 is still challenging me in how it should be presented. The operation is really fascinating and engaging for such a simple layout, and I want to do that justice with its presentation, even if that means it becomes a stay at home layout.

In closing again my thanks to you for following the blog and its associated channels. As ever if you have time please follow and read the other blogs and websites linked here, they are always worth reading or viewing. Thank you again and have a great new year.

Posted in accurascale, Bachmann, blog, blogger, blogging, BR Blue, British Rail, D&E, DC, DCC, Eighties, Exhibition, Facebook, Heaton Lodge, heljan, ho scale, hobbies, Hobby, Hornby, Inspiration, Layout, layout design, life, man cave, man-cave, media, model, Model Railroad, Model Railway, Modelling, Modelu, n gauge, new year, O Gauge, o scale, OO Gauge, OO9, peco, planning, railroad, railway, Rapido Trains, review, scale modelling, shelfie, social media, toy train, train set, transformation tuesday, TT120, tuesday transformation, Uncategorized, youtube | Tagged Bachmann, blog, Exhibition, HO, Hobby, Hornby, Layout, life, Model Railroad, Model Railway, OO, shelfie, throwback thursday, train, train set | Leave a comment

Merry Christmas 2025

Posted on December 25, 2024 by bawdsey

A quick note to wish all readers a good Christmas. I’m lucky not to be working this year, but I always spare a thought for those that are, regardless of industry or location. A shout out to the other bloggers and content providers linked via the blog. Always worth reading and spending some time enjoying their work if you have some downtime in the festive season.

A high five too, to those doing the unseen ‘work’, the carers. Sometimes the most difficult and unrelenting tasks looking after loved ones or animals with care and compassion. Have a good one!
